Motion Control Turntable | Precision Positioning Car Platform
In scientific research, automotive design, and high-end evaluation, "close enough" is never enough. Shenyang Weizhong offers the ZXK series, a motion-controlled turntable system designed for environments that demand extreme positioning accuracy. Based on our robust Pin-Gear Drive technology and enhanced with advanced electrical control, this system provides a stable, repeatable platform for the world’s leading R&D centers and design studios.

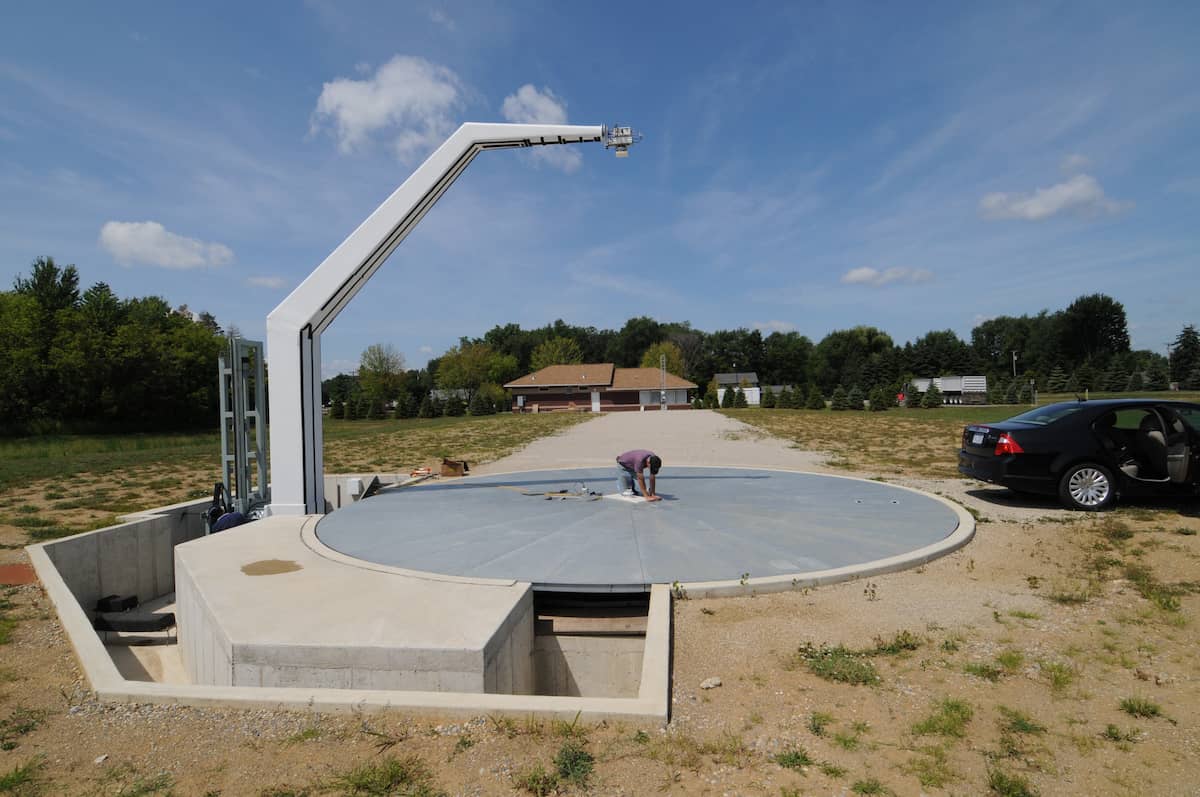

Global Success: Motion Control System for Mitsubishi Motors Design Center
Manual angle adjustments in laboratories or review halls are time-consuming and prone to inconsistencies. We automate the process for perfect repeatability.
Research and testing often require stops at specific, minute increments. Our system handles complex motion sequences with ease.
We provide interfaces for PLC, iPad, or custom program control, allowing the turntable to become an integrated part of your testing or photography suite.
Are you an industrial integrator or lab equipment provider? Join Weizhong's global network and offer the industry's most precise positioning solutions.
Dealer Inquiry

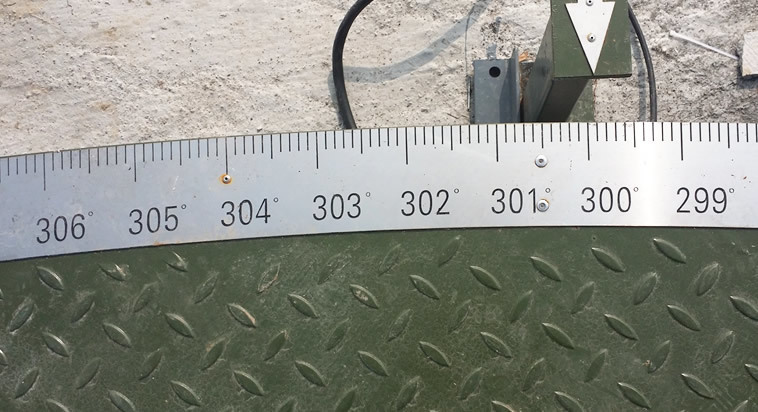

Users can input precise rotation values down to 2° via the intelligent control interface.
Equipped with high-precision encoders and variable frequency motors, the platform ensures a stopping accuracy of ≤±0.2°.
Built on our legendary ZX Pin-Gear platform, ensuring the same large load capacity and smooth rotation known across the industry.
Set specific rotation angles and dwell times for fully automated evaluation or multi-angle data collection.
Because every logistics hub and vehicle fleet is unique, our engineering team designs each turntable from the ground up based on your specific operational data.
We calculate the exact diameter and load requirements based on your heaviest vehicles and turning radiuses.
Custom deck profiling and pit depth design to seamlessly match your facility floor.
Tailored PLC programming and VFD controls designed for your specific operational needs.
| Model | Load (kg) | Stopping Accuracy | Input Precision | Control System | Drive Mechanism |
|---|---|---|---|---|---|
| ZXK-4000 | 4,000 | ≤±0.2° | 2° | PLC / Touch Screen / PC Interface |
Variable Frequency + Pin-Gear Drive |
| ZXK-4500 | |||||
| ZXK-5000 | |||||
| ZXK-5500 | |||||
| ZXK-6000 | |||||
| ZXK-Custom | Up to 150T | ≤±0.15° | 2° |
Our engineers are ready to help you configure the perfect positioning turntable for your lab or design studio.
Q1: Can I control the turntable via my own software?
A: Yes. We provide open communication protocols (RS485/Ethernet) for seamless integration.
Q2: What is the minimum movement increment?
A: The standard ZXK series supports step inputs as small as 2°.
Q3: Is the stopping accuracy repeatable over long periods?
A: Yes. By using absolute encoders and a non-slip mechanical drive, the system maintains ≤±0.2° accuracy year after year.
Q4: Do you provide on-site calibration services?
A: We offer comprehensive remote technical support and video guidance for calibration.
Q5: Can the turntable perform automated multi-angle stops?
A: Yes. The system supports Custom Motion Sequences for automated evaluation or 3D scanning.
Q6: Is the system capable of rotating heavy prototype vehicles smoothly?
A: Absolutely. Built on our ZX Pin-Gear platform, handling weights up to 150 tons for custom models.
